FEATURES

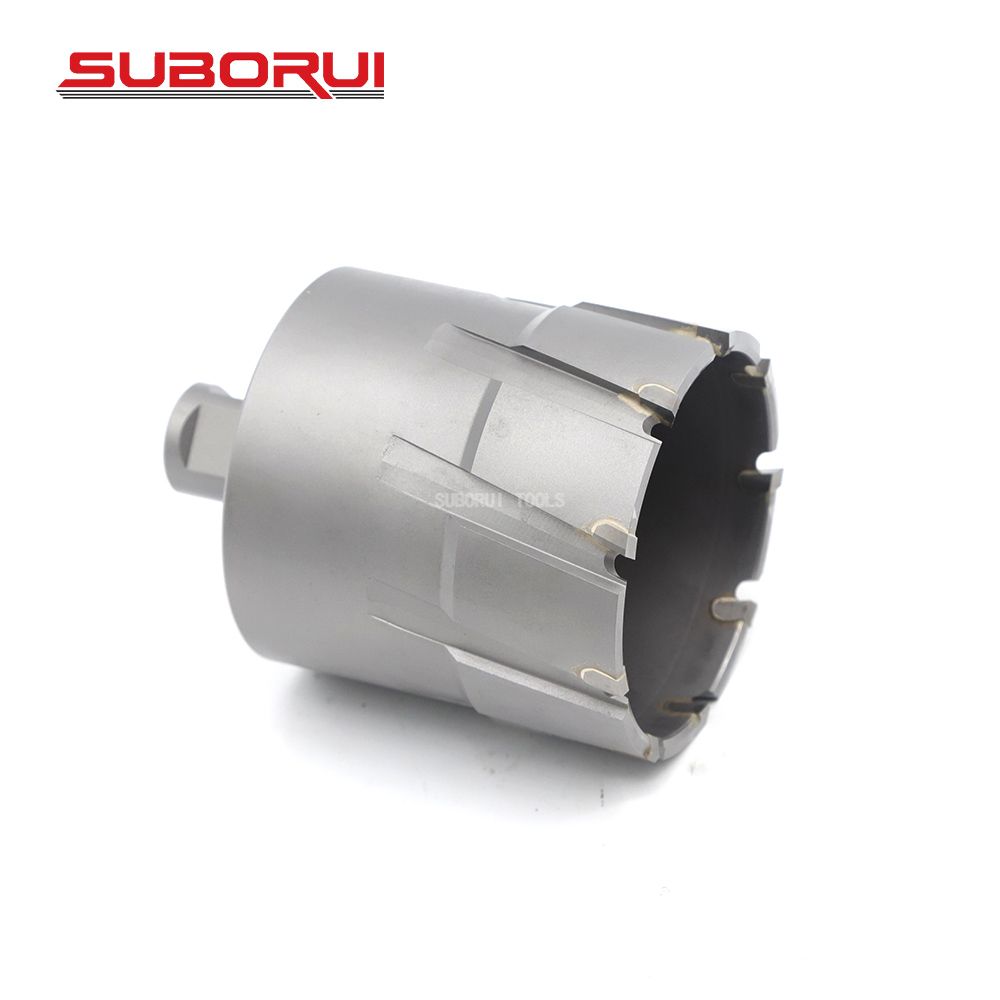

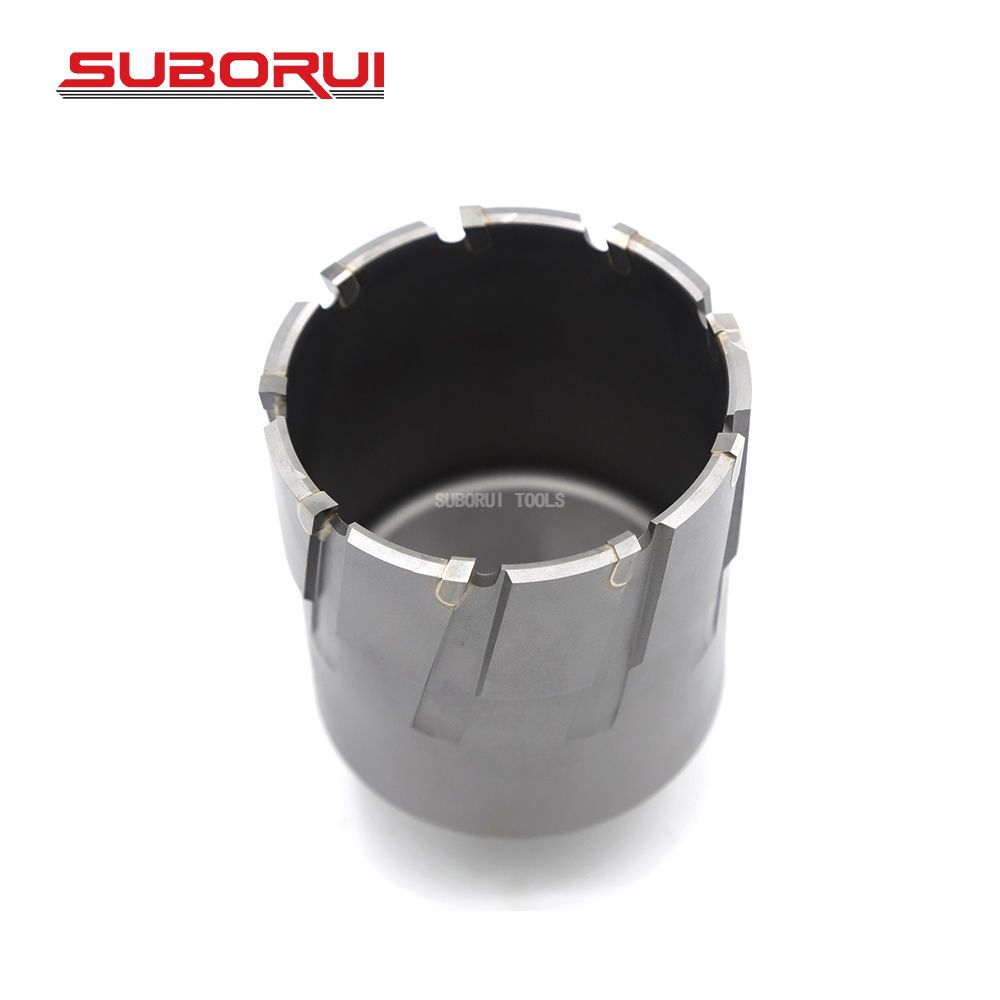

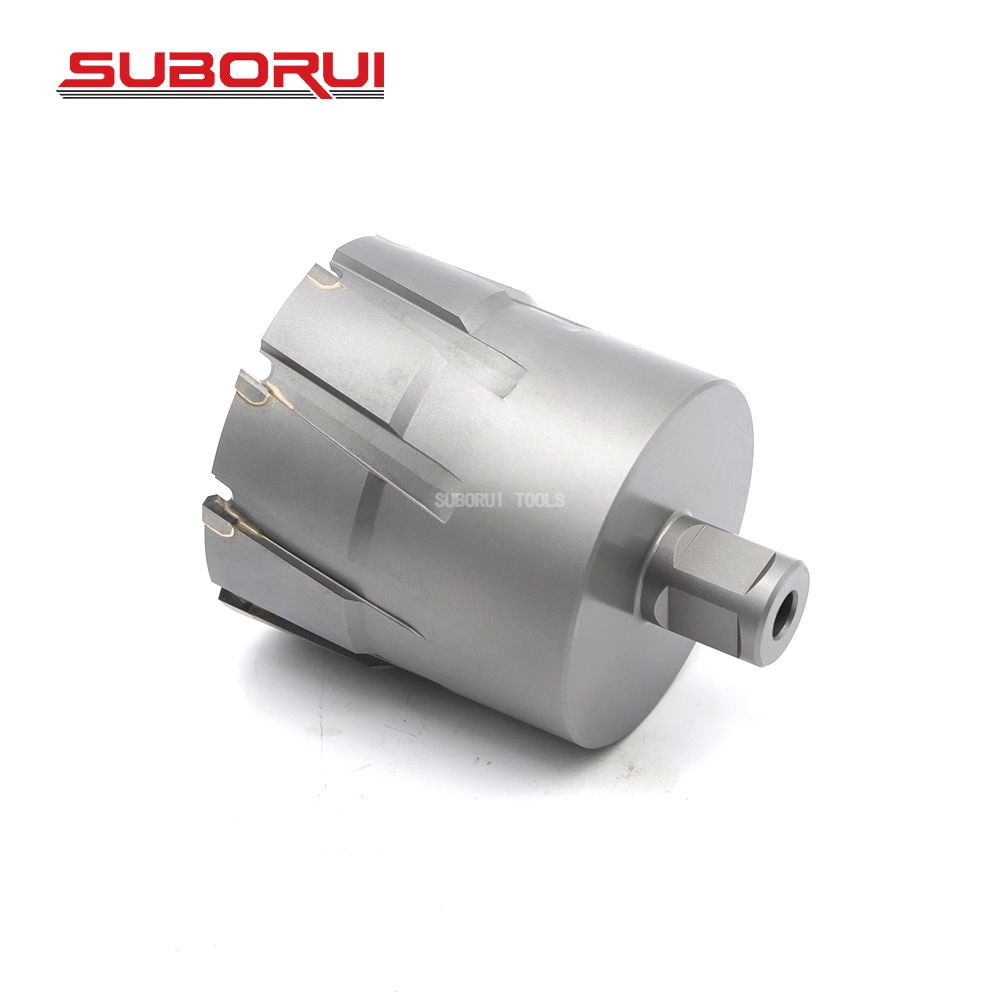

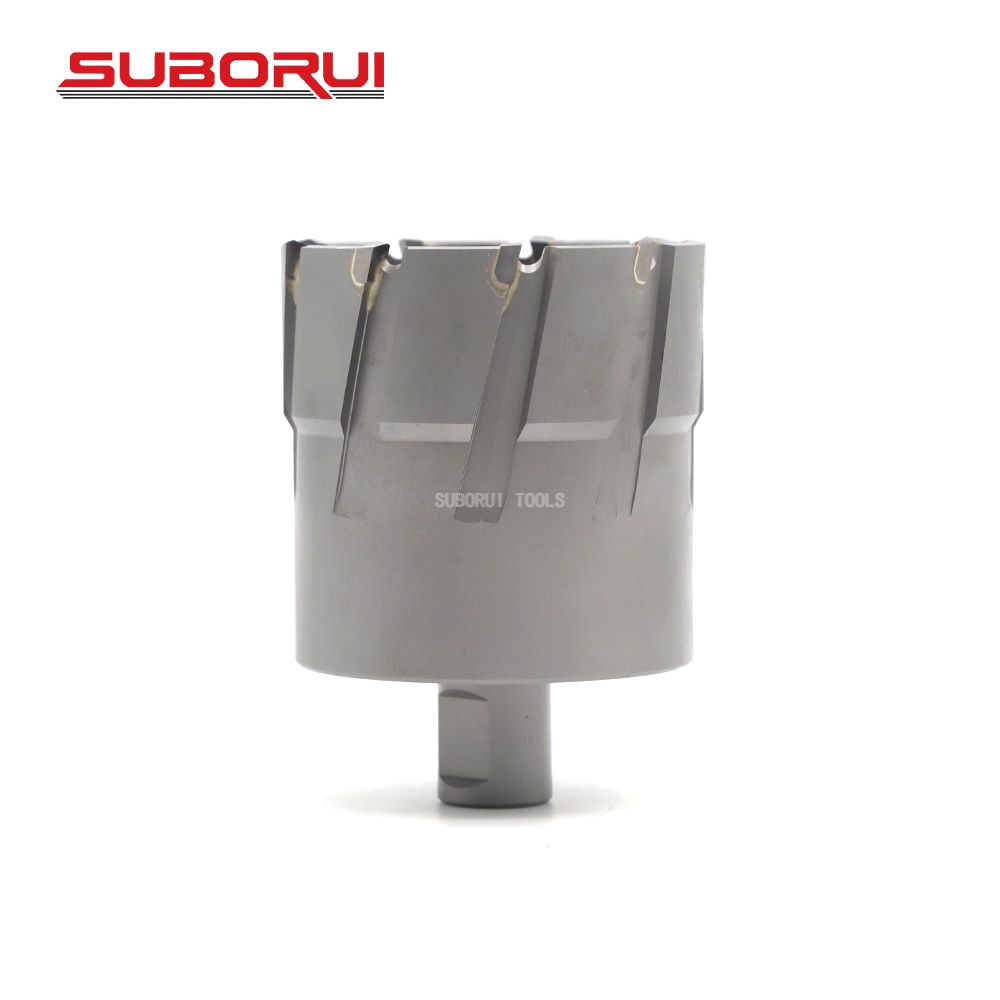

●TCT Annular Cutter features a carbide-tipped head that is harder and sharper.
Compared to high-speed steel (HSS) cutters, our TCT cutter offers cutting speeds that are 3-5 times faster.
● Carbide tip is suitable for high-temperature processing environments.
Heat resistance maintains the hardness and sharpness of the cutting edge, enabling high-speed feed
and metal cutting in a short time, thereby improving efficiency. In addition, it can also reduce tool
wear or deformation due to overheating, thereby saving costs.
●Our magnetic drill bits have sharper cutting edges and require less cutting force when cutting hard materials,
making the cutting process smoother. Less friction and roughness, providing cleaner and more precise
cutting results for high-precision processing scenarios. In addition, they generate less heat, reducing
the risk of material deformation or grinding.
SPECIFICATIONS
|
Cutting Depth(mm)
|
Diameter (mm)
|
Pilot Pin(mm)
|
|
35
|
φ12-17
|
6.34*90
|
|
φ18-65
|
7.98*90
|
|
|
50
|
φ12-17
|
6.34*102
|
|
φ18-65
|
7.98*102
|
|
|
75
|
φ14-17
|
6.34*130
|
|
φ18-65
|
7.98*130
|
|
|
100
|
φ14-17
|
6.34*160
|
|
φ18-70
|
7.98*160
|
